Anchor Bladder

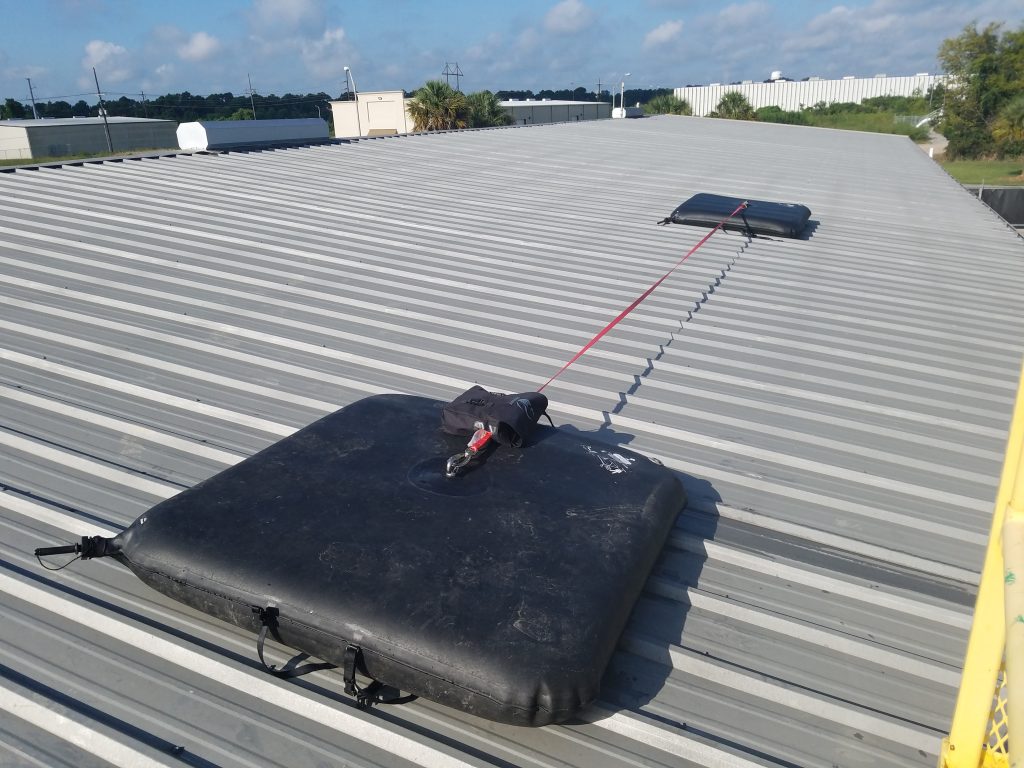

The Bladder man anchor is a water filled fall arrest anchor system. It has been tested on a wide variety of low slope roofs. It requires no holes to be drilled in the substrate, and without any heavy weights having to be lifted to the working surface.

Due to the manufacturing techniques of hot bonding with stitched and autoclave cured seams there are no side walls allowing the empty bag to go completely flat.
This also makes it stronger, tougher and more durable and includes a combined drain and fill with one way valve which prevents water escaping when the hose is pulled out.

Specifications

  • Material: Fire resistant Neoprene reinforced with Nylon
  • Dimensions: 4’9”x4’9”x8”
  • Weight: 25.1lbs [Empty]; 882lbs [Full]
  • Pressure Loading: 0.42lb/inch2
  • Puncture Resistance: Meets FED STD 191 part 1520
  • Capacity: 105gal

Features

  • Fill and drain point
  • No penetrations of substrate required
  • Pressure release vent
  • Single edge seam
  • 360° swivel

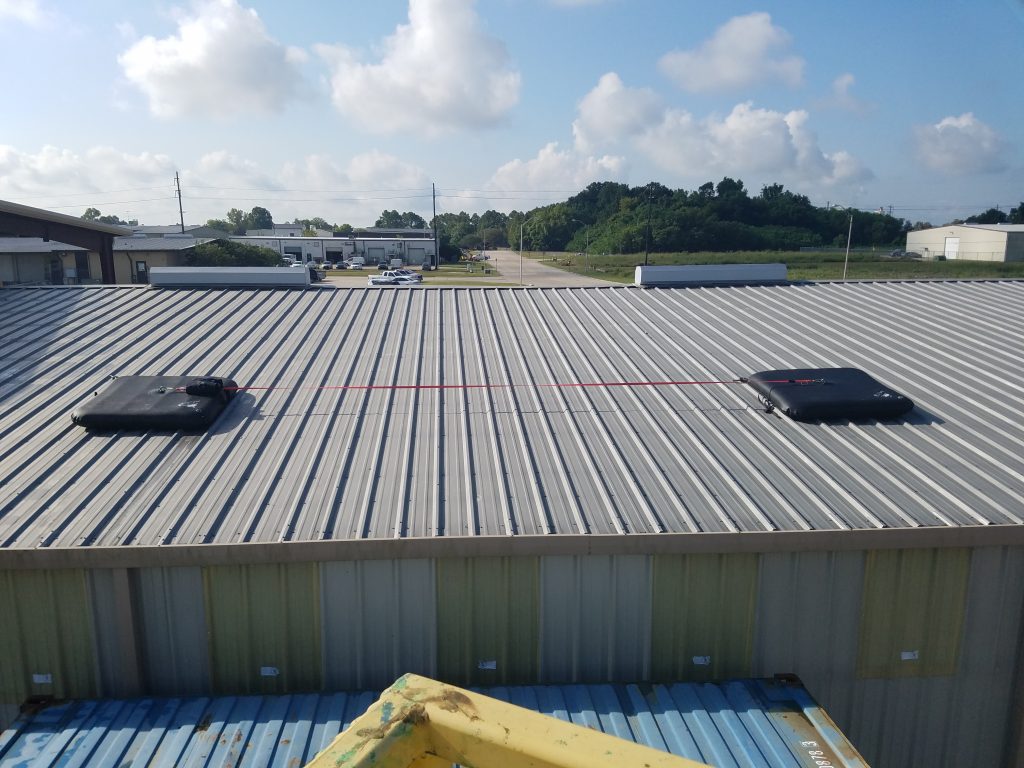

  • Temporary lifeline anchorage using two bladders
